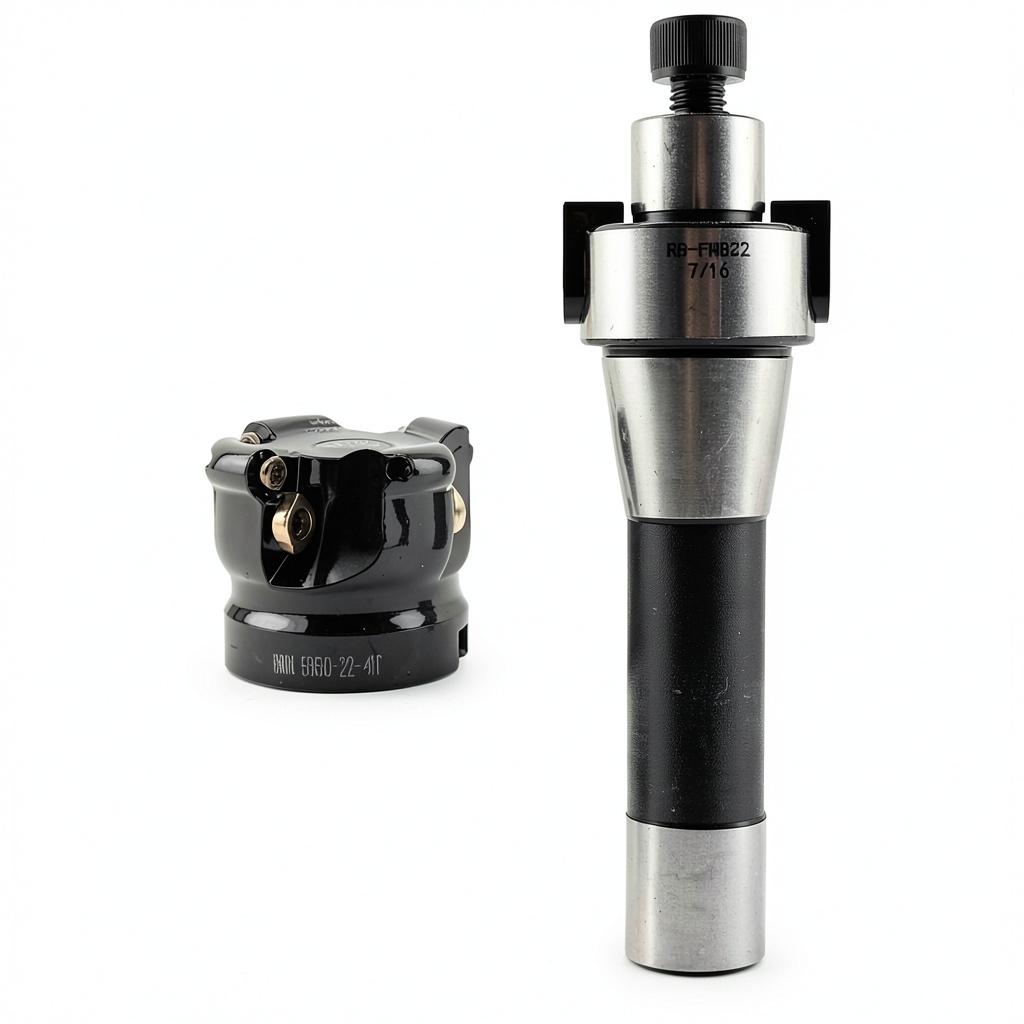

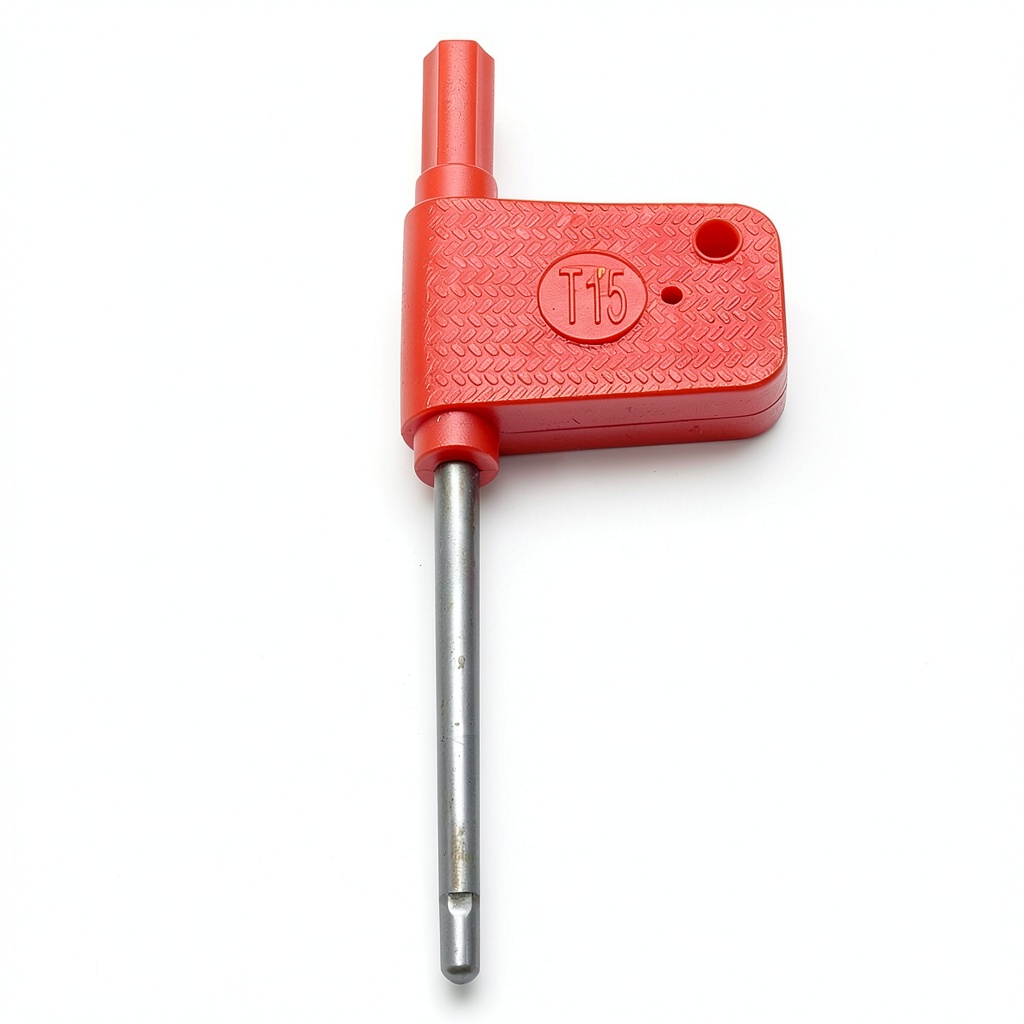

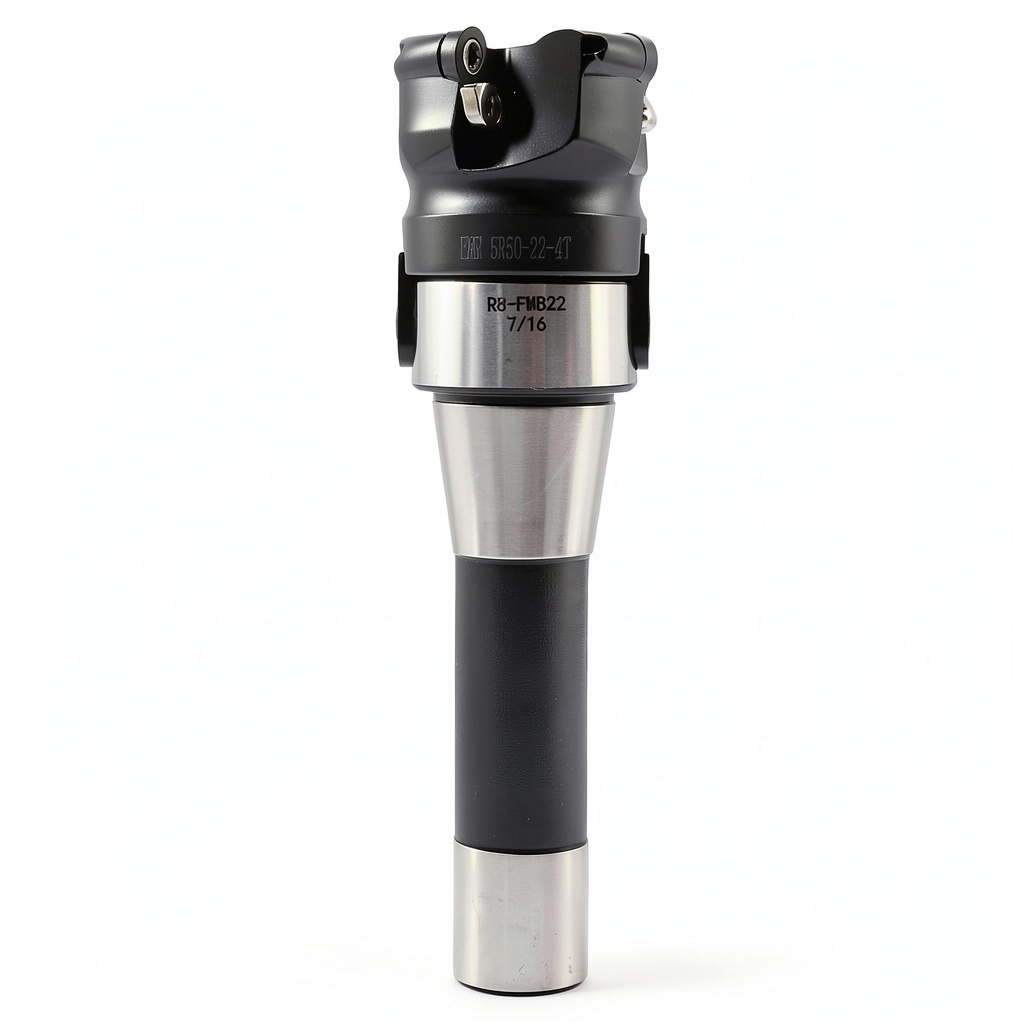

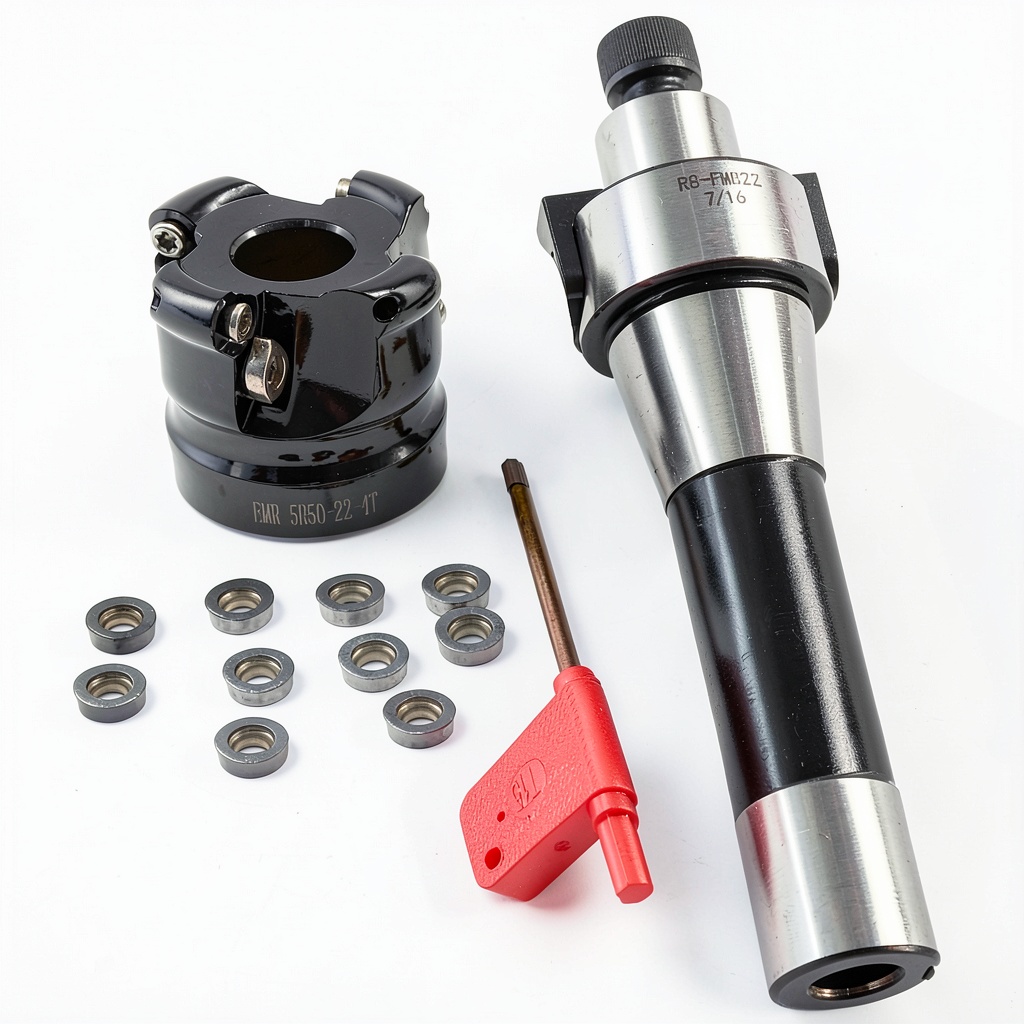

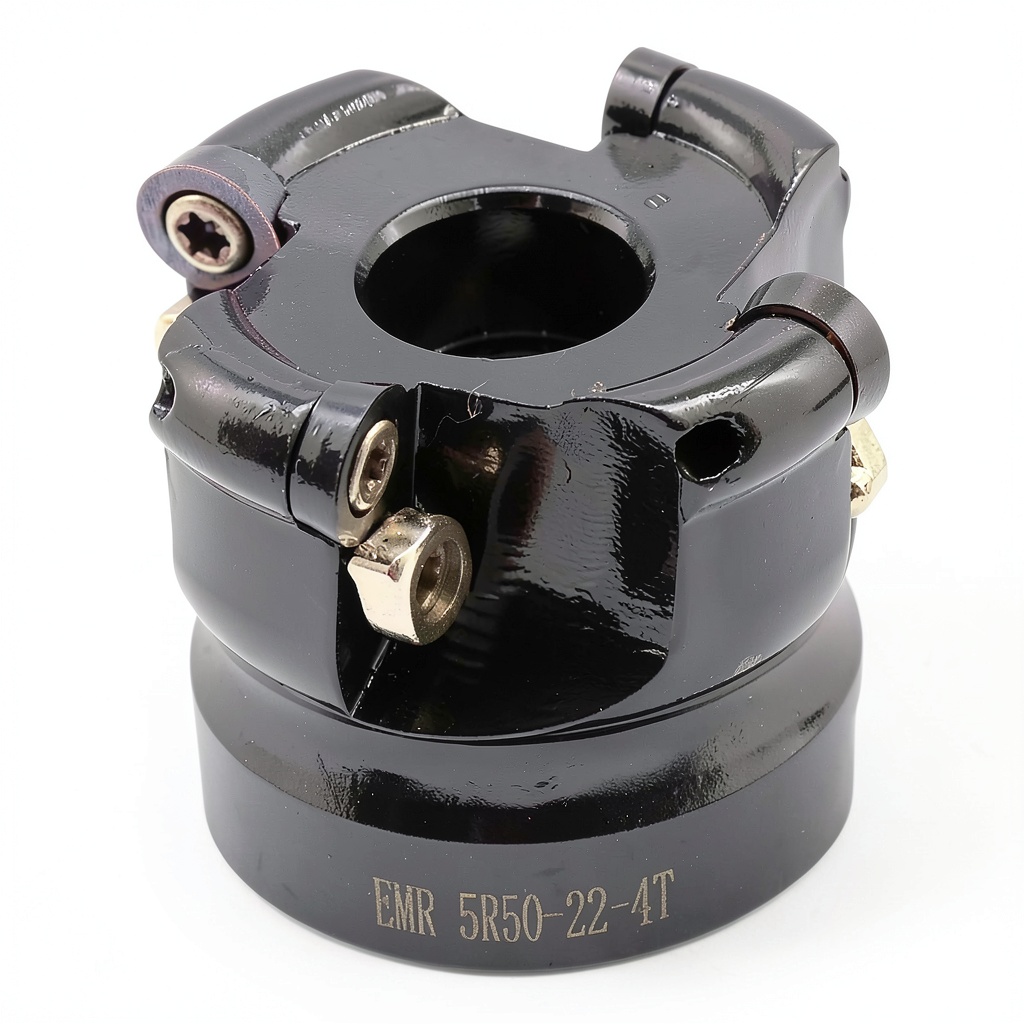

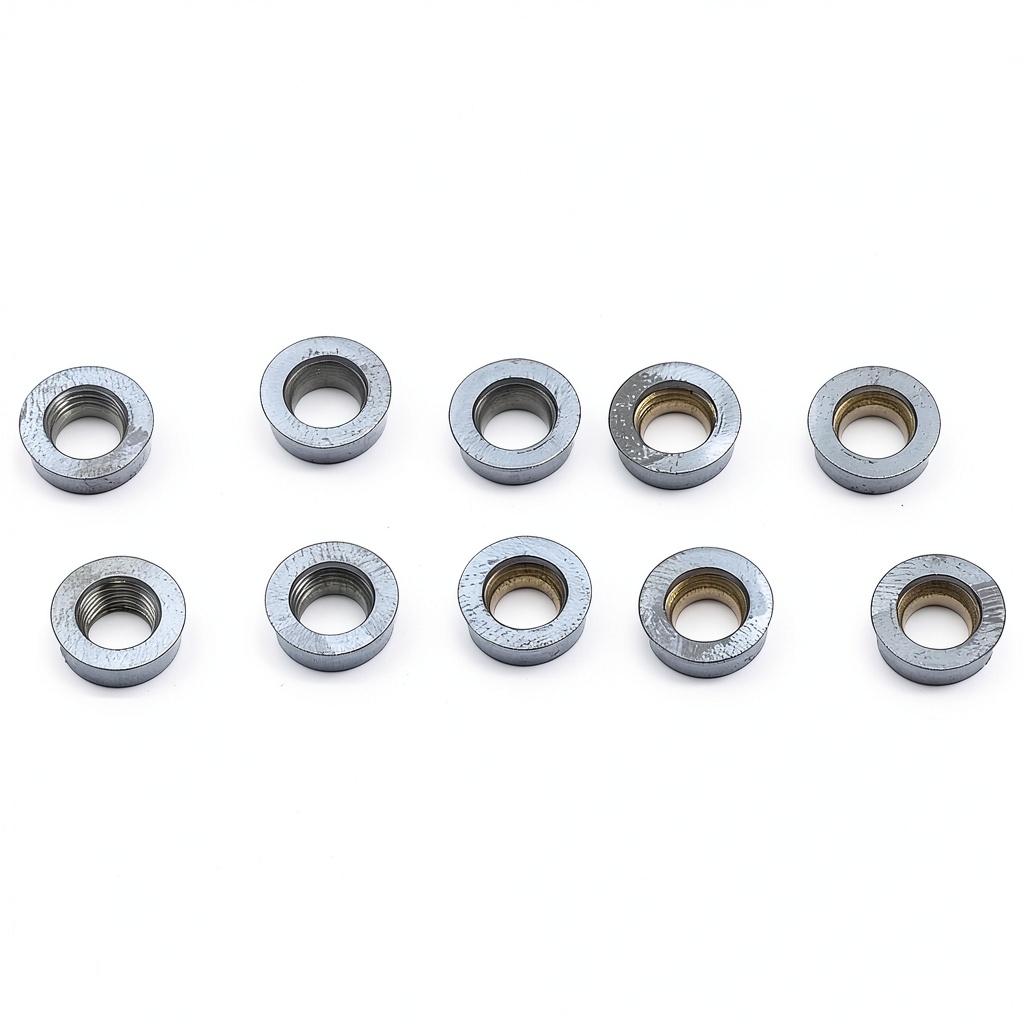

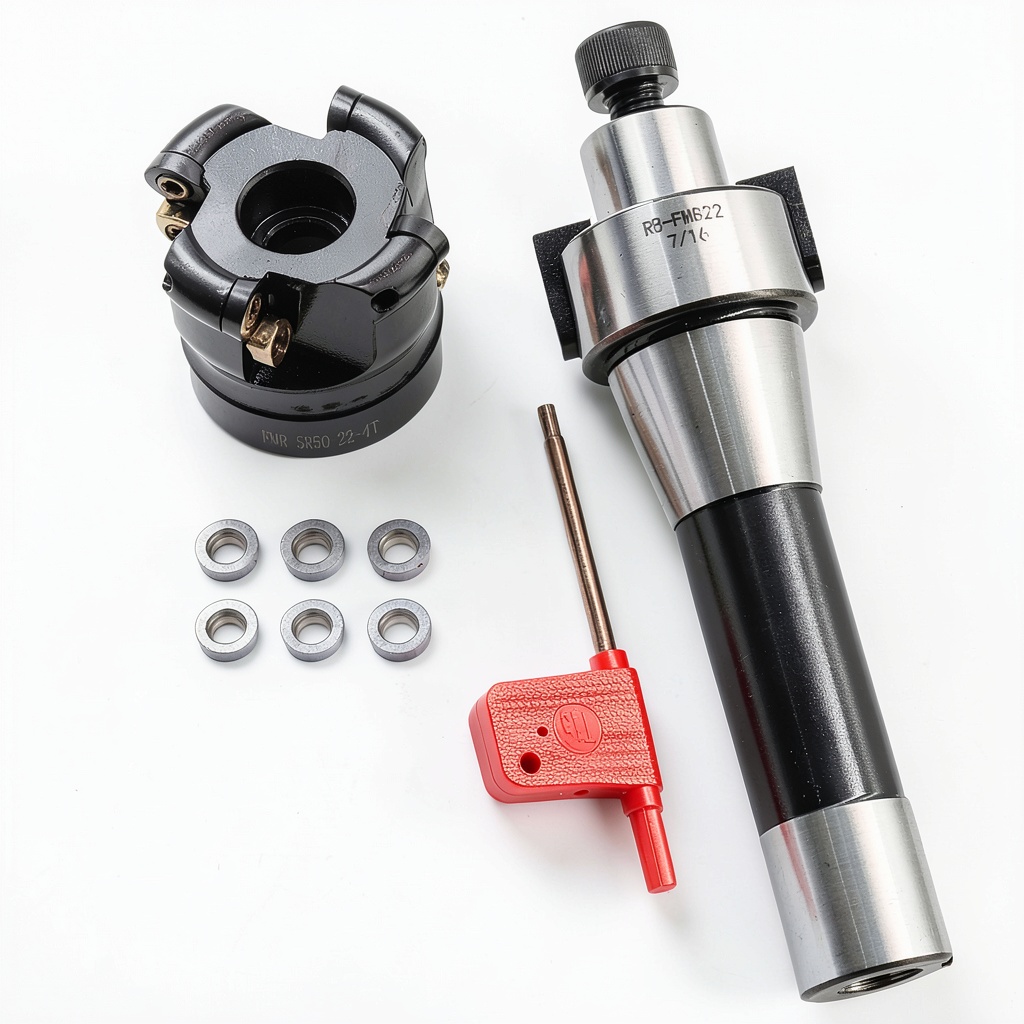

The R8 FMB22 End Mill Arbor from BestParts is engineered to meet the demanding requirements of modern CNC machining environments. Featuring a 7/16‑20 draw bar thread and a precisely machined 22 mm (0.87 in) arbor hole, this tool provides a secure and repeatable connection to the machine spindle. The included EMR 5R50-22-4T face end mill cutter offers a 50 mm (1.97 in) cutting diameter with six flutes, delivering high material removal rates while maintaining a smooth surface finish. Ten RPMW1003 round carbide inserts are supplied, each with a 0.39 in (10 mm) blade diameter and a 11‑degree cutting corner, optimized for steel grades up to HRC 40. The set also includes a T15 wrench for quick and accurate insert changes, ensuring minimal downtime during production runs.
Usage
This arbor and cutter combination is ideally suited for a wide range of machining tasks, including shoulder milling, face milling, and slotting operations on CNC machining centers and engraving machines. The robust shank design allows for stable rotation at high speeds, while the generous chip clearance space promotes efficient chip evacuation, reducing the risk of re‑cutting and improving overall tool life. Users can confidently machine forging steel, bearing steel, spring steel, and other high‑strength alloys, achieving tight tolerances and excellent surface quality. The tool’s versatility also makes it compatible with standard milling machines, providing flexibility for both high‑volume production and small‑batch prototyping.
Why Choose Us
BestParts is committed to delivering premium cutting tools that combine superior material quality with meticulous engineering. The R8 FMB22 set is manufactured from high‑grade steel, offering excellent permeability, impact resistance, and long‑term durability. Each component undergoes rigorous quality inspections to ensure consistent performance across all units. Our customers benefit from a reliable supply chain, responsive technical support, and a comprehensive warranty that covers manufacturing defects. By choosing this arbor set, you gain access to a tool that not only meets but exceeds industry standards for precision milling, helping you maintain competitive production schedules and reduce overall operational costs.
Key Features
- Secure 7/16‑20 shank thread ensures stable mounting for high‑speed milling.
- Four‑flute EMR cutter provides fast material removal while delivering a fine surface finish.
- Ten high‑quality carbide inserts enable quick replacement and extended tool life.
- Robust steel construction offers superior durability and resistance to impact.
- Dedicated technical support and warranty give confidence in long‑term performance.
FAQ
What size material can the R8 FMB22 arbor handle?
The arbor is designed for a 22 mm (0.87 in) bore diameter, making it compatible with most standard CNC milling machines that accept a 7/16‑20 draw bar thread.
Can the carbide inserts be replaced with other insert types?
Yes, the RPMW1003 inserts are interchangeable with other compatible carbide inserts of the same dimensions, allowing you to select the optimal geometry for specific material requirements.
What is the recommended cutting speed for steel with a hardness of HRC 40?
For steel up to HRC 40, a cutting speed of 150–180 m/min is recommended, with appropriate feed rates to achieve optimal chip formation and surface finish.
Is the tool suitable for use on non‑CNC milling machines?
While the set is optimized for CNC applications, it can also be mounted on conventional milling machines that support a 7/16‑20 shank, providing flexibility across different shop floor equipment.
What kind of after‑sales service does BestParts provide?
BestParts offers a responsive customer service team, technical assistance for tool setup, and a warranty that covers any manufacturing defects, ensuring you receive prompt support throughout the product’s lifecycle.
